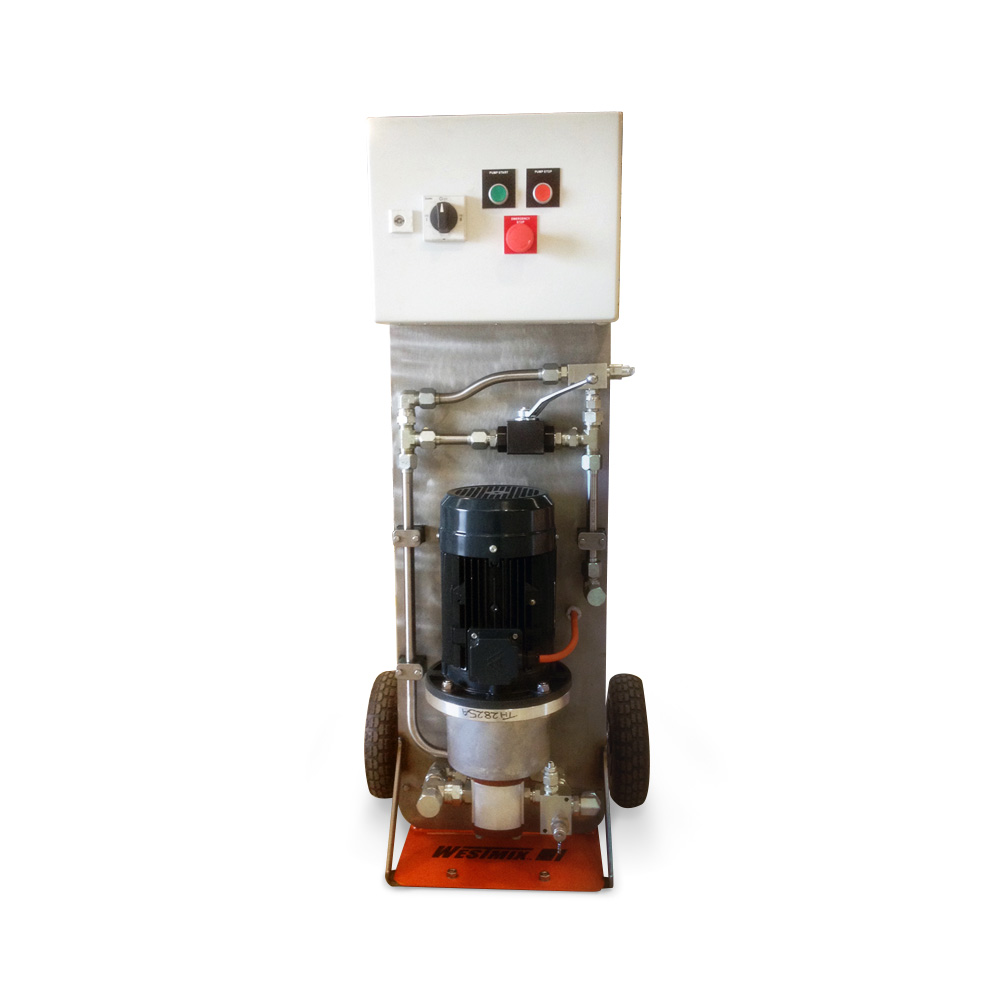

Oil Heating Trolley

Model : AW-3600

This unit delivers heated oil to optimise the performance of flushing equipment

Features

  • Carbon steel frame trolley with solid rubber tyres for portability
  • 3Kw electric motor
  • 19cc alloy gear pump
  • Pressure relief valve, ball valve bypass, and needle valve.

All hire equipment are subject to our Terms & Conditions, available here

Main Frame Carbon steel frame trolley
Dimensions (L x W x H) 530 x 550 x 1300 mm
Weight 65 kg
Media/Fluid Mineral Oil
Maximum System Pressure Factory setting: 55 Bar
Maximum Flow Rate 26L/min @ 50 Bar
Electric Motor 3kW, 415 VAC, 50 Hz
Connections Inlet: 1 5/16” JICM
Outlet: 3/4”JICM
Electrical 32A, 4 Pin with 10m lead
